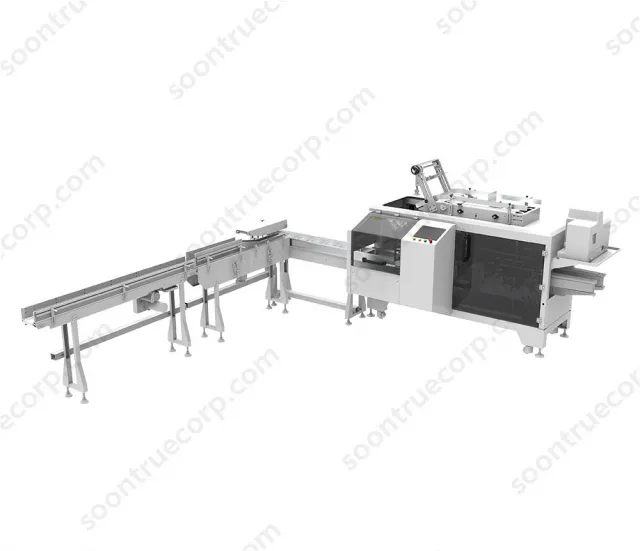

ZH200 Box Tissue Packing Machine

This machine is full servo control, stable performance. for sku changing, just operate on the screen.

Inquire Now

PRODUCTS PARAMETER

MODEL		ZH200 box tissue packing machine
PACKING SPEED （box/min ）		50-100
Model configuration		8 set Servo+2 set Ordinary speed regulating motor
（Finished product）Length（mm）		150-230
（Finished product）Width(mm)		100-150
（Finished product）Height（mm）		50-100
Carton quality requirements		The boxes need to be pre-folded , 250-350g/m2
Power type		3-phase 4-wire AC 380V 50HZ
Motor Power(kw)		5
Total power (including glue spraying machine)		9.5Kw
Machine dimensions		425716051823
(Length×Width×Height) (mm) (The height is the highest and the glue spraying machine is included)
Compressed air	Work pressure( Mpa)	0.6-0.8
	Air consumption( L/min)	15
Machine net weight (kg)		950
